A friend recently purchased a DMMCheck Plus and let me take it home for some testing. This device provides a known DC voltage, AC voltage, four resistances, four capacitances, four inductances, and two frequencies that you can compare your instruments against. This was a great chance to check the accuracy of my DMMs, 2 of which I acquired second-hand.
When is it useful? It outputs a single voltage and single current measurement. It will not test all the ranges of your multimeter.
DMMCheck Plus Calibration Certificate
The DMMCheck Plus’s calibration certificate shows its component values measured with the following calibrated equipment:
- HP/Agilent/Keysight 3458A digital multimeter, 8.5 digit
- Keysight 53220A locked to 10 MHz with Trimble GPSDO
- BK Precision 891 LCR meter
The following information was provided for this DMMCheck Plus unit:
Measurement | Value |
---|---|
Serial Number | XBY16 |
Calibration Date | 4/16/2024 |
Burn-In Duration (Hrs.) | 1200 |
Calibration Temperature | 21.3C/71F |
DCV Temp. Coefficient | +6uV/F |

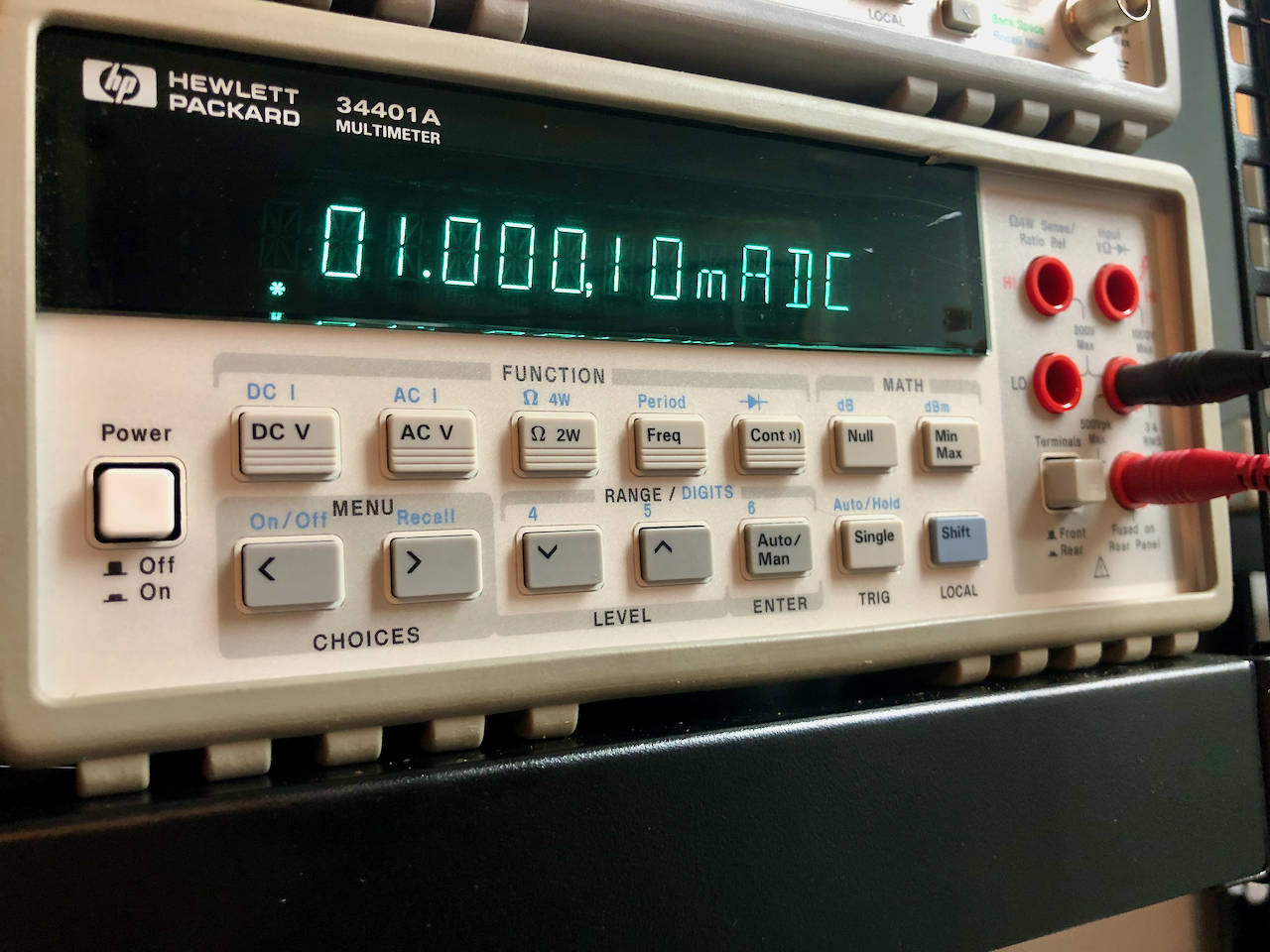

HP 34401A DMM DC current measurement.
Test Procedure
The following test procedure was used to evaluate my three DMMs: a Fluke 101, Fluke 79 III, and an HP 34401A.
- The DMMCheck Plus was hooked up to 15V (the battery was low).
- The same 3ft test leads with mini-grabbers connected the DMMs to the DMMCheck Plus.
- The Fluke DMMs warmed up less than 5 minutes.
- The HP 34401A warmed up an hour-ish.
Measurement | DMMCheckPlus | Fluke 101 | Fluke 79 III | HP 34401A (front) |
---|---|---|---|---|
DC Voltage Reference | 5.0000 Vdc | 5.001 | 4.99 | 5.00009 |
AC Voltage Reference | 4.999 Vac | n/a (1) | 5.02 | 4.99702 |
DC Current Source (1) | 0.9998 mA dc | n/a (2) | 0.999 | 1.00010 |
AC Current Source (1) | 1.000 mA ac | n/a (2) | 1.002 | n/a (3) |
Freq 1 Hz Oscillator | 100.00376 Hz | 99.9 | 100.0 | 100.004 |
Freq 2 Hz Oscillator | 10.000376 kHz | 9.99 | 10.00 | 10.0004 |
Freq 1 Hz duty cycle | 50.010% | 50.0 | n/a (2) | n/a (2) |
Freq 2 Hz duty cycle | 50.000% | 50.1 | n/a (2) | n/a (2) |
100 Ω Resistor | 99.964 Ω | 100.1 | 100.2 | 100.0725 |
1 kΩ Resistor | 1.0000 kΩ | 1.000 | 1.000 | 1.00014 |
10 kΩ Resistor | 9.9986 KΩ | 10.00 | 10.00 | 9.99963 |
100 kΩ Resistor | 99.991 KΩ | 100.0 | 99.7 | 100.0017 |
0.001 µF Capacitor | 0.001042 µF | 0.00110 | 0.00123 | n/a (2) |
0.01 µF Capacitor | 0.01028 µF | 0.01036 | 0.01037 | n/a (2) |
0.1 µF Capacitor | 0.1002 µF | 0.1009 | 0.1001 | n/a (2) |
1.0 µF Capacitor | 1.035 µF | 1.088 | 1.081 | n/a (2) |
1 µH Inductance | 1.020 µH | n/a (2) | n/a (2) | n/a (2) |
10 µH Inductance | 10.27 µH | n/a (2) | n/a (2) | n/a (2) |
100 µH Inductance | 107.2 µH | n/a (2) | n/a (2) | n/a (2) |
1 mH Inductance | 1.016 mH | n/a (2) | n/a (2) | n/a (2) |
(1) The Fluke 101 is not an RMS-reading voltmeter.
(2) Instrument not capable of this measurement.
(3) The lowest AC current range is 1 amp.

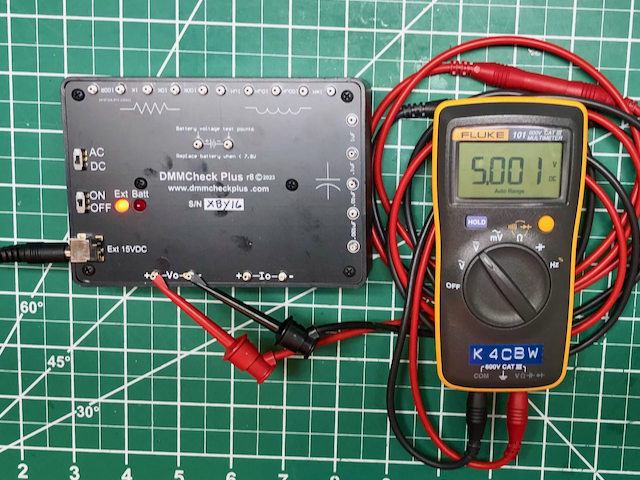

Fluke 101 DC voltage measurement.
